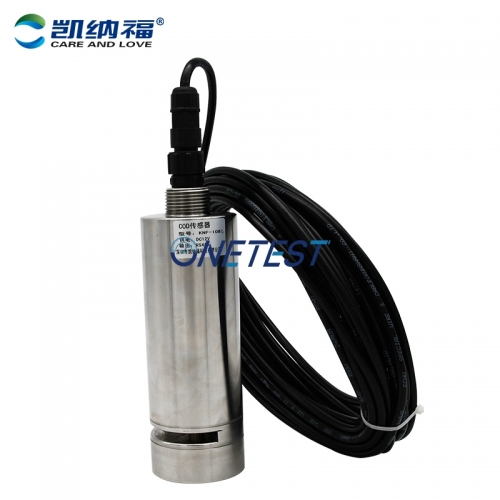

KNF-108
COD sensor, COD detector manufacturer is used in various water treatment (river, lake, drinking water source, groundwater, water purification, etc.), aquaculture, environmental monitoring, CIP and other industries of chemical oxygen demand determination and Early warning to help assess water quality.
The KNF108 COD sensor adopts 254nm and 365nm dual-channel light sources, which can automatically correct the interference of suspended matter, with automatic temperature compensation, so as to achieve more stable and reliable measurement values, without reagents, and no secondary pollution, and is more economical and environmentally friendly. It can continuously monitor water quality online, automatically compensate for turbidity interference, and is equipped with an automatic cleaning device, which has good stability even for long-term monitoring
KNF-108 COD detector, COD online monitor technical indicators:
KNF-108 type
COD monitoring sensor (dual optical path 254nm and 365nm)
Turbidity resolution: 0.1NTU
Automatic cleaning brush: standard
Temperature range: 5~45℃
COD range: 0.5-500mg/L
Shell protection level: IP68
COD accuracy: <5%
Maximum pressure: 1bar
COD resolution: 0.1mg/L
User calibration: 1 or 2 points
Turbidity range: 0-300 NTU
Power supply information: DC12V+/-5%, current <50mA (without cleaning brush)
Turbidity accuracy: <3% or 0.2NTU
Sensor diameter: 50mm
Sensor length: 214 mm
Shell material: POM and 316L stainless steel
Cable length: 10m (standard configuration)
