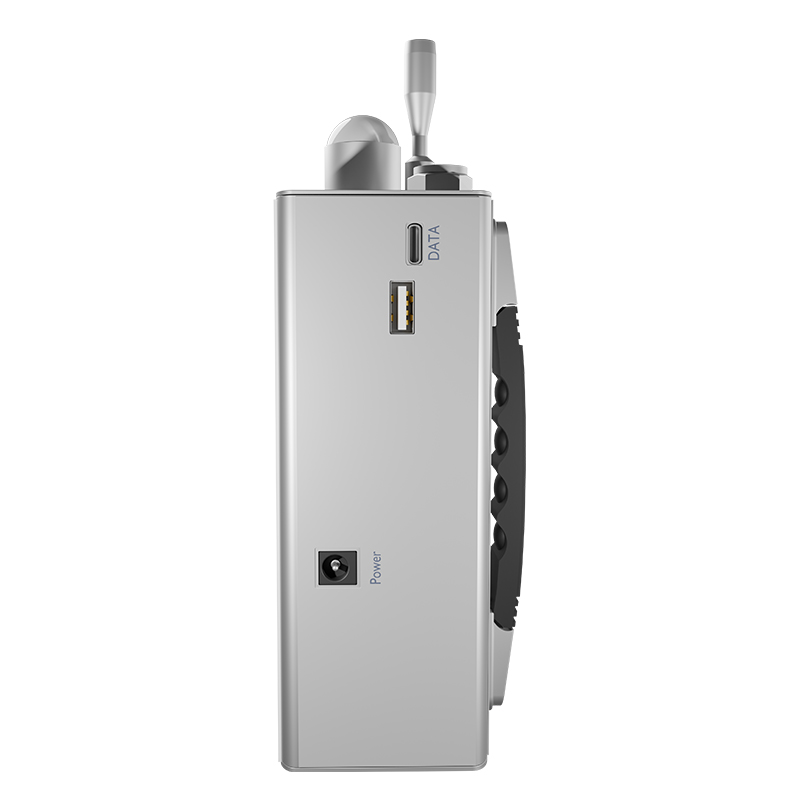

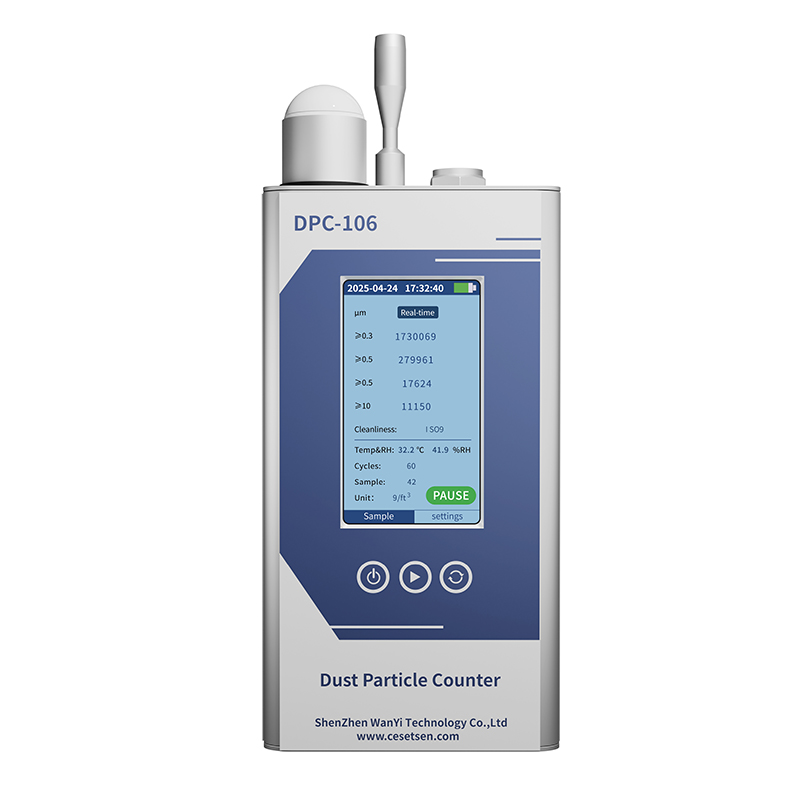

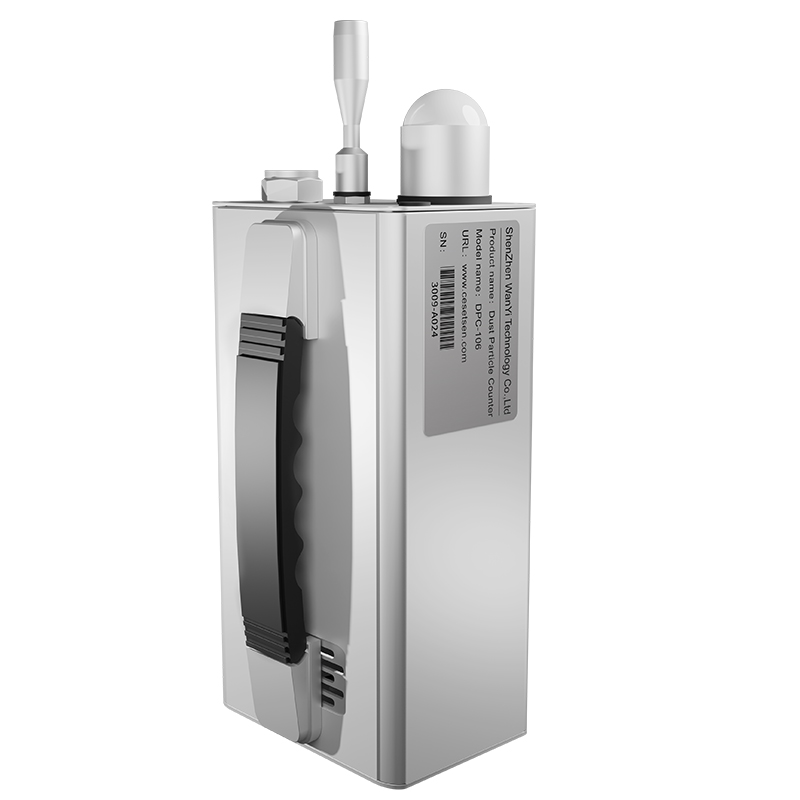

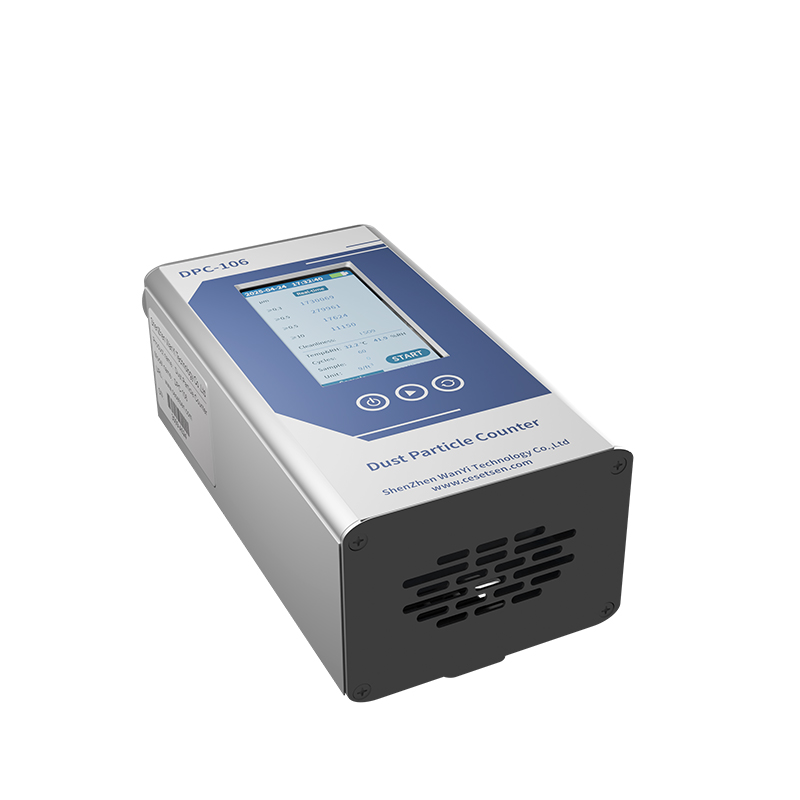

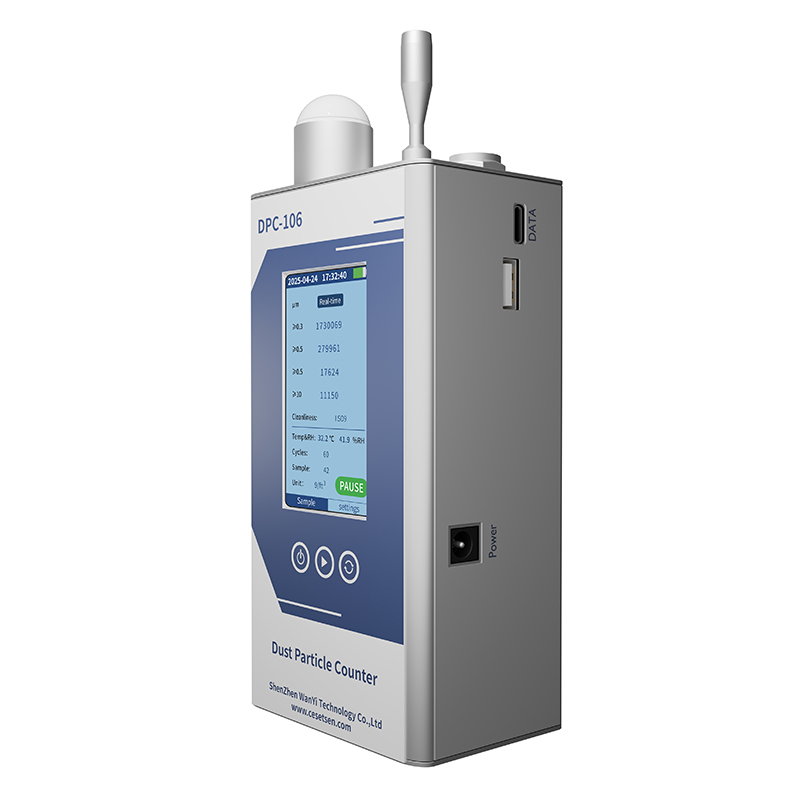

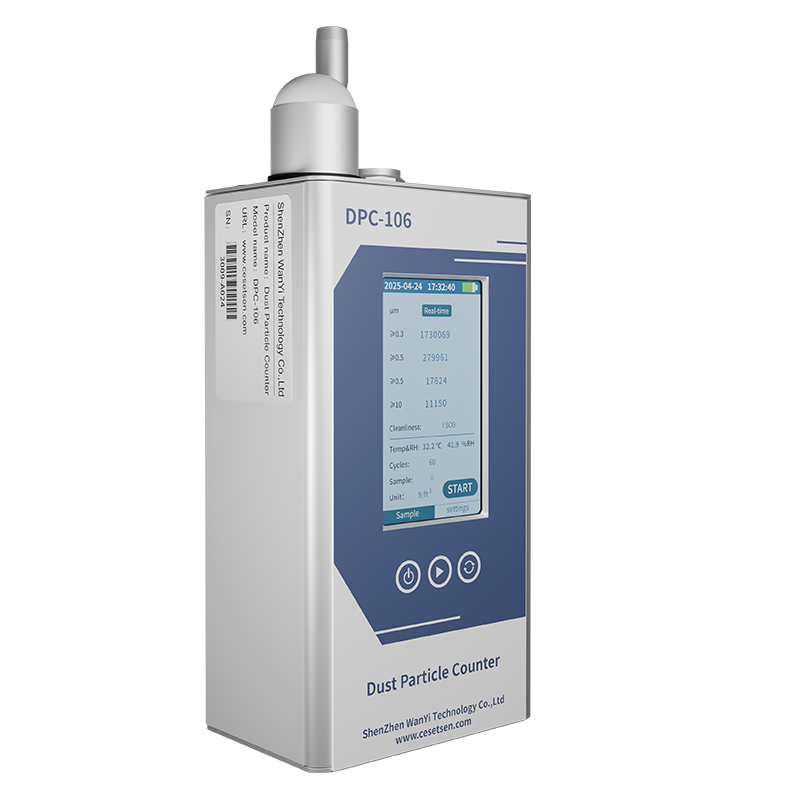

The DCP-106 is a handheld particle counter launched by Wanyi Technology in compliance with ISO 21501. Equipped with a built-in 2.83L sampling system, it is a handheld multi-channel particle counter based on laser scattering principle, capable of accurately measuring six industry-standard particle sizes: 0.3μm, 0.5μm, 1μm, 3μm, 5μm, and 10μm.
Featuring a large screen display and three-button operation, it offers simple and efficient usability, enabling rapid detection in various scenarios. The built-in high-performance lithium battery supports continuous operation for over 6 hours, while the 512MB internal storage provides a theoretical data capacity of no less than 7,000,000 records. Monitoring data can be viewed in real-time on the screen or exported via a Type-C port to a computer for comprehensive analysis.
The DCP-106 series particle counter boasts higher measurement accuracy and particle size resolution, along with enhanced resistance to humidity interference. It utilizes industrial-grade lasers and photosensitive components, combined with light-scattering particulate monitoring technology, meticulously calibrated optical and airflow structures, as well as a new generation of high-frequency weak-signal processing circuits and high-precision particle identification algorithms, ensuring more accurate measurement of particle concentrations in environments with stringent cleanliness requirements.
I. Working Principle of DCP-106 Particle Counter
Based on the principle of single-particle laser scattering, through precise optical design and the gas path designed according to the principles of fluid mechanics, the particles in the sampled air pass through the beam in sequence with a high probability, generating weak scattered light. Through precise optical signal collection devices, scattered light is collected and projected onto highly sensitive and high-bandwidth photodetectors. By identifying and analyzing the scattered pulses of each particle, the corresponding signal intensity of each particle is obtained. The particle size of each particle is obtained through the calibration program; The number of particles was obtained through conversion and aerodynamic calibration.
Ii. Features of the DCP-106 particle counter
1. Accurate data: Based on standard design, single-particle laser scattering principle, industrial-grade laser light source, large-aperture optical glass lenses, high counting efficiency, strong particle size resolution ability, good repeatability and consistency.
2. High reliability: Aerodynamic correction, self-checking of optical and air paths, insensitivity to vibration, ensuring the reliability and stability of the system.
3. Stable flow: It adopts an active sampling method, which can support stable, long-term and high negative pressure sampling.
4. Human-computer interaction: 4.3-inch intelligent touch screen, which can be set for local start and stop, sampling mode, periodic sampling, data unit switching, alarm, time and device address, etc
5. Data alarm: Optional sound and light alarm function is available, and the alarm value can be set.
6. Data Unit: Screen display supports unit switching [particles /m³ particles /ft³]
7. Counting mode: Supports real-time data display and cumulative value data display
8. Local storage: It can store no less than 7 million data entries, export files through the Type-C port, and support connection to Bluetooth printers
9. Communication interface: USB, 4G is optional
10. Circuit safety: It features ESD, overvoltage, overcurrent and revers connection protection to ensure the stability and reliability of the circuit
Iii. Application Fields of DCP-106 Particle Counter:
Clean rooms for the pharmaceutical industry, the electronics and semiconductor manufacturing industry, the food processing industry, and fine processing, etc.
Iv. Technical Specifications of DCP-106 Particle Counter
| No. |
Project |
Parameters |
Remarks |
| 1 |
Measurement output |
0.3~10μm A total of 6 channels of particle numbers |
0.3μm、0.5μm、1μm、3μm、5μm、10μm |
| 2 |
Range |
4,000,000 P/ft3 |
When the loss reaches 10% |
| 3 |
Input voltage |
DC16.8V/1A |
|
| 4 |
Battery life |
The theoretical battery life is ≥6 hours |
@25℃,50%RH |
| 5 |
Rated power |
4.1W |
| 6 |
Working temperature range |
-20~60℃ |
| 7 |
Humidity range |
0~99%RH |
| 8 |
Working atmospheric pressure |
86KPa~110KPa |
| 9 |
Response time |
1S |
| 11 |
Data storage |
No less than 7000000 |
Type-C Communication line |
| 12 |
Counting efficiency |
0.3μm/50% >0.45μm/100%
(In accordance with ISO21501 |
@25℃,50%RH |
| 13 |
Screen size |
Touch-controlled color 4.3-inch LCD screen |
| 14 |
Battery capacity |
14.8V/2AH |
| 15 |
Measurement accuracy |
±15%~±30% |
@25℃,50%RH |
| 16 |
Product size |
203*104*63mm |
The isodynamic sampling head is not included |
| 17 |
Lifespan |
3 years |
Below 40℃ |
| 18 |
Measurement unit |
Three measurable units that can be set P/m3 P/ft3 P |
| 18 |
Optional items |
4G wireless transmission |
