ONETEST-041 Is a multi-channel particle counter based on the principle of laser scattering, which can accurately measure 6 kinds of particle sizes including 0.3μm, 0.5μm, 1μm, 3μm, 5μm and 10μm.

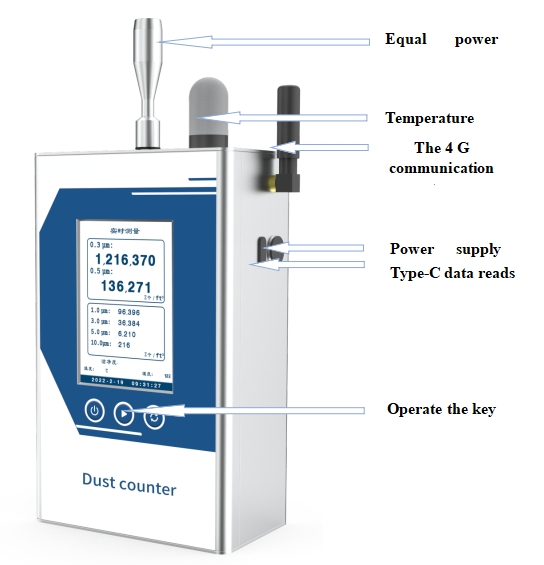

Large screen display, three-button operation, simple and efficient operation, in a variety of scenarios can achieve rapid detection. Built-in high-performance lithium battery can provide the equipment to run continuously for more than 6 hours, at the same time built-in 512M storage, theoretical storage of no less than 7,000,000 data. Support USB communication, monitoring data can be viewed real-time data on the screen, or can be exported to the computer through Type-C port to view and analyze all data.
ONETEST-041 Has a higher measurement accuracy and particle size resolution, has a stronger ability to resist the effects of humidity. ONETEST041 Particle counter adopts industrial grade laser and photosensitive components, combined with the latest generation of light scattering particle monitoring technology, carefully tuned optical and gas path structure, as well as a new generation of high frequency weak signal processing circuit and high precision particle identification algorithm, more accurately measure the concentration of various environmental particles with cleanliness requirements.
Features
1.Data accuracy: single-particle laser scattering principle, industrial-grade laser light source. Count efficiency, good repeatability and consistency.
2.Particle size range: particle size range 0.3~10μm, ensure counting efficiency, a single sensor covers six channels.
3.High reliability: aerodynamics correction, light path and air path self-inspection, insensitive to vibration, to ensure the reliability and stability of the system.
4.Stable flow: active sampling, constant flow intake fan, optional PID flow control function, can support stable, long time, high negative pressure and sampling; optional air pump version.
5.Quick response: second-level data update.
6.Communication interface: USB communication.
7.Circuit safety: with ESD, overvoltage, overcurrent, revere contact protection, to ensure the stability and reliability of the circuit.
8.Safe and friendly: low-voltage power supply, no electric shock; no radioactive source, no light pollution.
9.Sampling flow: standard 2.83L/min, air pump/fan two sampling methods are optional.
10.Data unit: The screen display will support the unit switch [m3 ft3】
11.Count mode: support real-time data display and 60s cumulative value data display
Scope of application
Pharmaceutical industry electronic industry food processing industry finishing clean room, etc.
Working principle
Using the single particle laser scattering principle, through the precise optical design and the hydrodynamic principle, the particles in the sampled air pass through the beam in turn to produce weak scattered light, collecting the scattered light and project onto the high sensitive and high bandwidth photodetector. The signal intensity of each particle is identified and analyzed by the particle size of each particle by conversion and aerodynamic calibration.
| NO. |
project |
parameter |
remarks |
| 1 |
Measuring output |
0.3~10μm, 6 channels |
0.3μm, 0.5μm, 1μm, 3μm, 5μm and 10μm |
| 2 |
Range |
4,000,000 pcs/ft3 |
Meet the loss of 10% |
| 3 |
Input voltage |
DC16.8V/1A |
|
| 4 |
Duration of flight |
Theoretical endurance time ≥ 6 h |
@25℃,50%RH |
| 5 |
Power rating |
4.1W |
|
| 6 |
Temperature range |
-20~60℃ |
|
| 7 |
Humidity range |
0~99%RH |
|
| 8 |
Atmospheric pressure |
86KPa~110KPa |
|
| 9 |
Response time |
1S |
|
| 10 |
Communication interface |
USB2.0 |
|
| 1 1 |
Data storage |
No less than 7,000,000 pieces |
The Type-C interface for export |
| 12 |
Counting yield |
0.3μm/50% >0.45μm/100%
(Per. ISO21501) |
@25℃,50%RH |
| 13 |
Screen size |
3.5 Inch |
|
| 14 |
Battery capacity |
14.8V/2AH |
|
| 1 5 |
Fractional error |
±15% |
@25℃,50%RH |
| 1 6 |
Product size |
173*104*63mm |
Excluding inlet and outlet sampling heads |
| 1 7 |
Life span |
3 years |
Below 40℃ |
